As our holdings of miniature binoculars and catalogs have gotten massive, and as Covid has made international acquisition/shipment much more difficult or impossible, it has become harder to entertain myself with new postings. Since there are other non miniature binoculars and optics that I also find interesting or unusual, I decided to add some space to be able to indulge myself in exploring some of them. |
|
Nedinsco 7x50 Swedish Navy Dutch Mfgr Military Binoculars |
|
The Nederlandse Instrumenten Compagnie (usually known as Nedinsco) is a Dutch subsidiary of Zeiss that was founded in 1921 in Vlissingen in Holland, then soon moved to Venlo in Holland. I assume it was founded to be able to produce military optics without regard to restrictions against German military production imposed by the WWI Treaty of Versailles. These M56 Nedisco binoculars carry a Swedish Crown military property mark, and were used by the Swedish Navy. They have yellow desiccant ports. |
|
S Ǿ ARTILLERIET (NAVAL ARTILLERY) |
|
MARINE-TJENESTEKIKERT (MARINE SERVICES/ NAVY) |
|
M/56 (believed to indicate MODEL 1956) |
|

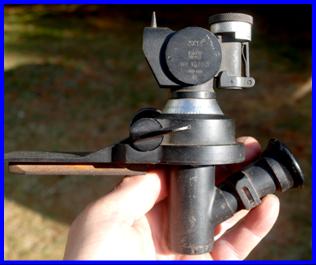

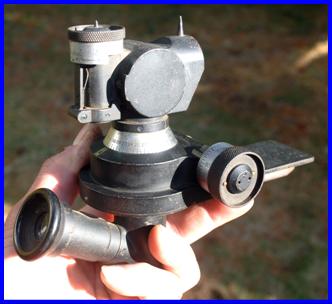

NIKKO Artillery 3x13 ° Optical sight for 1932 Japanese Type 92 72mm Battalion Howitzer ( 九二式歩兵砲 , Kyūni-shiki Hoheihō ) |
|
My Japanese artillery sight is from a type 92 light howitzer known as Kyūni-shiki Hoheihō/ 九二式歩兵砲 , which was introduced in 1932 (year 2592 imperial calendar). These were used in the Manchuria incident and invasion of Manchuria, in the second Sino Japanese war, and were used in WWII, and were even used as late as the 1960’s in the Vietnam War. For the Japanese army this was the standard battalion artillery ( 大隊砲 , Daitaihō ). My optical sight is marked NIKKO, which is the brand name used by Nippon K ō gaku K ō gy ō Kabushikigaisha (which later became Nikon) from around 1921-1945. Nippon Kokaju military binoculars and military optical devices of WWII are usually marked NIKKO. |
|

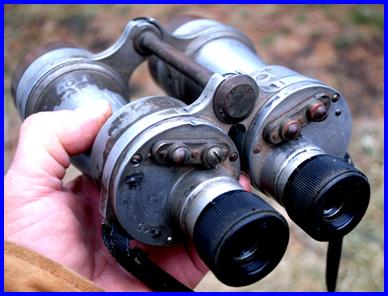

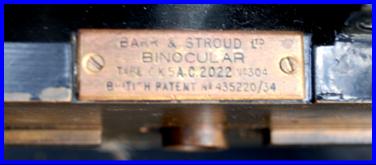

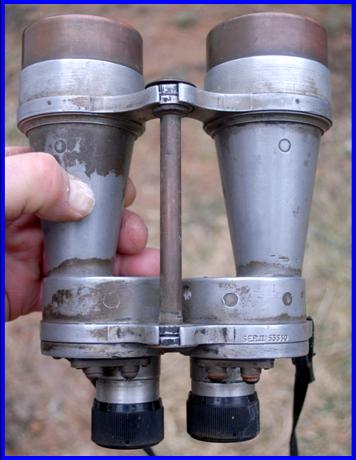

Barr & Stroud Ltd. Type G.K.5 6x42 Naval Artillery Director Binoculars |
|
My British Royal Navy G.K.5 Fire Director binoculars were made by the Scottish Firm of Barr & Stroud Ltd Glasgow. Fire directors calculate the arc of fire (indirect fire) necessary to drop artillery rounds on targets over much longer distances than possible for direct fire (think mortar versus rifle sighting). This is the optical line of sight mechanism which would interact with the distance calculation and gun performance factors and wind factors when attached to the fire director to give elevation and windage settings to the gun crew. Undated, but believed to date in the period WWII to a decade or so after WWII. |
|
These binoculars have rubber ocular ring protection and rubber top body protection, as had also been common on German WWII binoculars intended for naval use. |
|

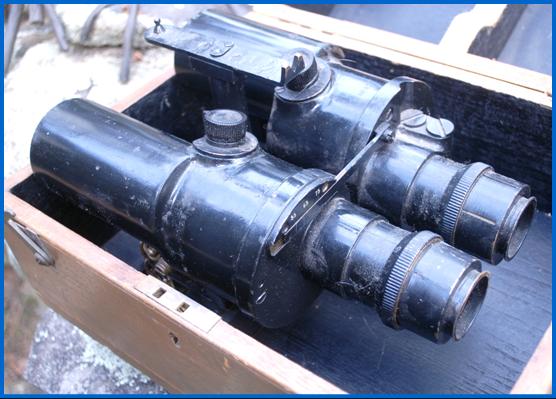

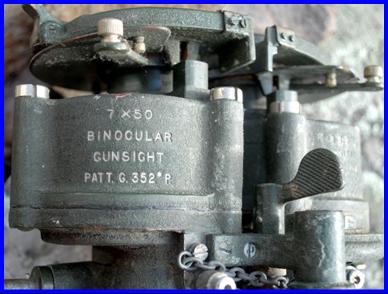

Ross 7x50 Naval Artillery Director Military Binoculars Pattern G-352 |
|
My British Royal Navy pattern G-352 7x50 Fire Director Binoculars were made by the British firm Ross London. They would originally have has a rubber brow pad and eyecup. Fire directors calculate the arc of fire (indirect fire) necessary to drop artillery rounds on targets over much longer distances than possible for direct fire (think mortar versus rifle sighting). This is the optical line of sight mechanism which would interact with the distance calculation and gun performance factors and wind factors when mounted to the DCT (Director Control Tower) fire director to give elevation and windage settings to the gun crew. This particular model of Ross binoculars was illuminated, and has filters of different colors on a rotating disc. And like many Naval optics, these binoculars have desiccant ports with caps. The distance between eyepieces adjust . |
|

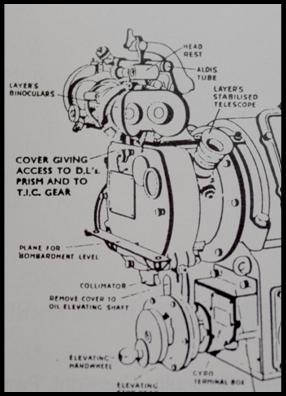

A similar model of Ross Artillery Director Binoculars are shown mounted to a Navy Director Control Tower for surface targets (there were also fire directors for anti aircraft guns). |
|
The “Broad Arrow” mark is a UK Ninistry of Defense Property mark. The “W” usually means waterproofed on British Optics. |
|

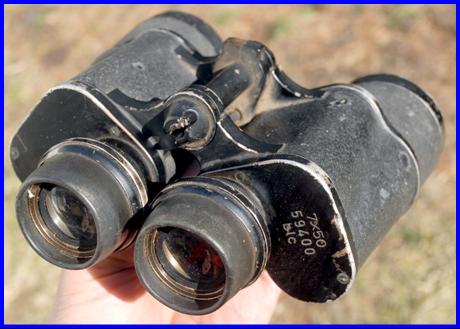

1944 BLC (Zeiss) 7x50 German Gas Mask Military Binoculars |
|
My uncommon BLC (German WWII mfgr code for Zeiss) binoculars were specifically designed to be able to be used when wearing a gas mask, with their extra large ocular lenses for the eyes. T h ey are pictured at left with an early 1936 dated Wehrmacht short gas mask and short can , and a later WWII German military long gas mask and can. By the serial number and also by not having a range grid reticle, these binoculars are believed to have been made in 1944. All were probably a WWII US soldier bring back “souvenirs”. The 1936 gas mask on the left and it’s can are both marked to Mr Fleige, who was a WWII shunt manager at the Freiburg Hauptbahnhof railway station (Brg.Hbf), the main train station of Freiburg im Breisgau, in Baden-W ü rtenburg. |
|
1939 Huet 7x50 French Armee de L’Air (Air Force) Military Binoculars |
|

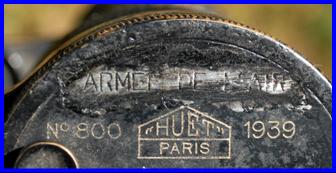

My 1939 dated French Huet Paris 7x50 binoculars are marked as being property of the Armee de L’Air, the French Air Force. Huet brand binoculars were made by the French company Soci é t č G č n č rale D’Optique. When the German army occupied France, many French Huet military binoculars were seized and used, and the company continued to manufacture these type binoculars for Germany, with occupation made binoculars marked “dienstglas”. |
|

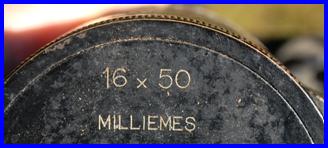

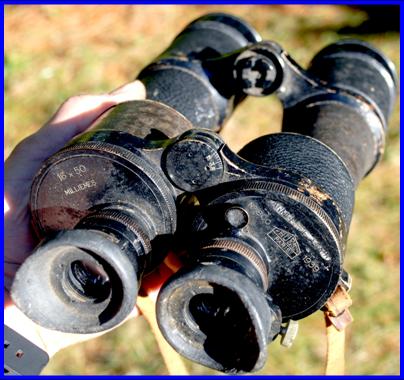

1939 Huet 16x50 French Armee de L’Air (Air Force) Military Binoculars |
|
My 1939 dated French Huet Paris 16x50 binoculars are marked as property of the Armee de L’Air, the French Air Force. This marking had been painted over. It is common when a soldier made off with government binoculars for the property mark to be defaced or covered up. But a certain amount of French military equipment including binoculars were reused by occupying German troops, so it is also possible a Wehrmacht army user simply painted over the air force mark. Huet brand binoculars were made by the French company Soci é t č G č n č rale D’Optique. |
|
These 16x military binoculars are a unusually high magnification for hand held military (and civilian) binoculars |
|

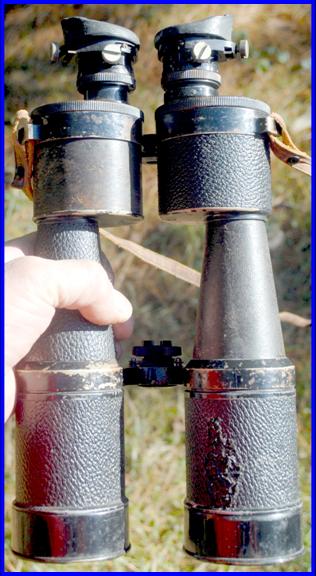

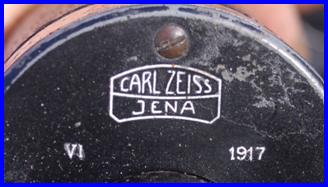

1917 Carl Zeiss Jena D.F. 10x50 German Army Dienstglas WWI Military Binoculars |
|

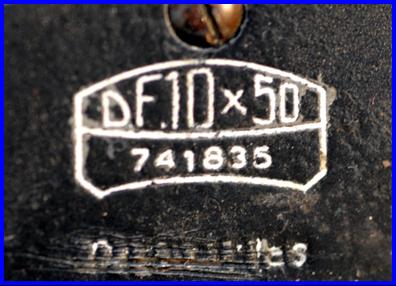

My 1917 WWI dated German 10x50 military binoculars are Dienstglas German Military property marked, which has been defaced or scratched out. It is quite common when a soldier makes off with government binoculars that they will deface or obscure or cover up the government ownership property mark and this is the case on these. These are a good high end example of the twin telescope origin of binoculars. The “ K ” marking is believed to be an acceptance mark of GPK Spandau. The “ D.F . ” marking is for Doppelfernrohr (Double telescope). |
|

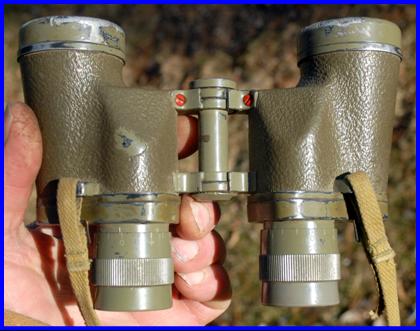

Australian Military Issue Japanese Made 6x30 Laser Filtered Binoculars |
|

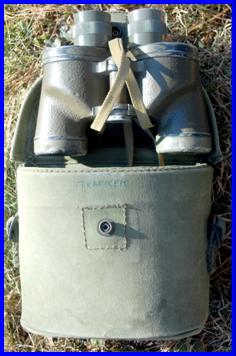

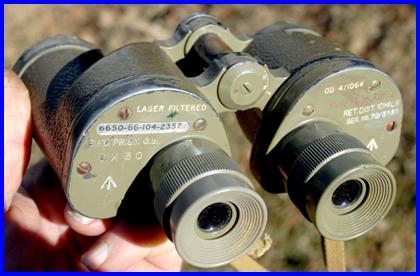

My Australian 6x30 military binoculars carry the broad arrow property mark of the UK and commonwealth, and they are laser filtered. My best guess is that they date from the 1970’s. They were contracted through Bruce Birnie Pty Ltd., of Melbourne Australia. The “JB7” manufacturer mark indicates that the assembling manufacturer of the binoculars was the Japanese firm of Nippon Kogaku Kogyo (Nikon). The case is marked to soldier “TRACKER”, which may be a name or a nickname. The red painted screws indicate not to be unscrewed except by technicians. |
|

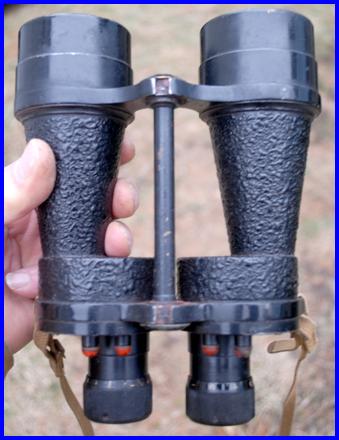

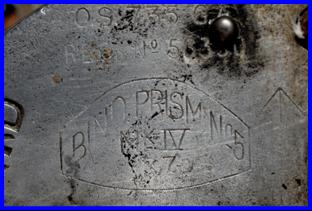

1943 Australian Military Issue British Made NIL No 5 Mk IV 7x50 Binoculars |
|

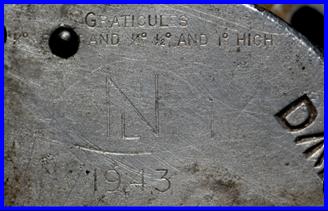

My 1943 dated Australian issued British manufactured No 5 Mk IV binoculars were made by NIL/ Nottingham Industries Limited. NIL appears to have been a UK Ministry of Supply created wartime company (1941-1946) which was set up in what had previously been a cigarette factory, but with optics and binocular manufacturer Ross operating it. The binoculars carry the WWII era Australian military property mark of broad arrow between two letters “D”, and also seems to have a UK military property broad arrow mark. |
|
Ross London No 5 Mk IVa 7x50 British Binoculars |
|
These binoculars have a right eyepiece horizontal graticule (grid) for range finding. By aligning the grids on something of a generally known length (like a truck) the number of lines give the distance. The desiccant ports on these binoculars appear to have been added after the binoculars were manufactured. This is a modification seen on some No 5 Mk IV binoculars. These desiccant ports allowed flushing a desiccant dried air through the binoculars to prevent “fogging” caused by humidity within the binoculars when there is a marked interior/ exterior temperature differential. This predated the more modern practice of sealing the binoculars and filling the inside with an inert gas such as nitrogen or argon to prevent fogging. |
|

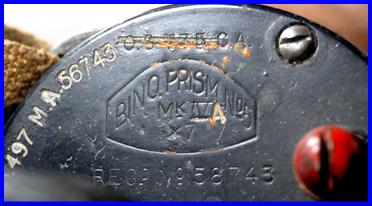

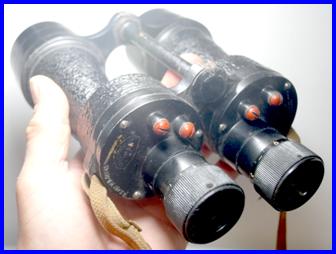

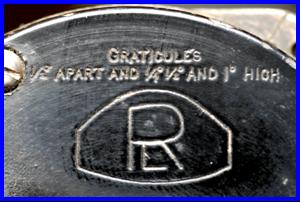

My undated Ross London No 5 Mk IV(a) binoculars have some odd aspects. They are in unissued condition, and without the usual wear. While a military pattern MkIV binocular just like the NIL example above, these have no broad arrow UK or commonwealth military property marks on them. Also the Mk IV original designation has been modified after manufacture with an “ A ”. They have the desiccant ports red painted, which is a UK military practice to indicate removal by technicians only and/or use of a sealant. They have multiple “ OS ” numbers, one with an “ M.A. suffix and one with a “ GA ” suffix. “ OS ” numbers are Govt. “Optical Stores” modifications documentation, and binoculars MA and GS suffixes are supposedly only present on UK military binoculars. The likely explanation is that these are No5 Mk IV binoculars bought under a UK government contract, probably toward the end of WWII, but were not needed, so were placed into government storage. Hence unused condition. As they were not actually taken into military service, they were not broad arrow military property marked, so no countering disposal marks. The right plate defines range graticules, but the binoculars do not have them. It is known on some Mk IV binoculars the graticule was removed before selling as surplus, so probably they were removed as one of the marked changes, perhaps to facilitate disposal. The UK government sold off a lot of military binoculars in the 1950’s to surplus resellers like Headquarter and General Supply, Optics retailers like Charles Frank, and others. (you can see this in our catalogs sections). It included used binoculars, new surplus binoculars, and WWII captured binoculars. |
|

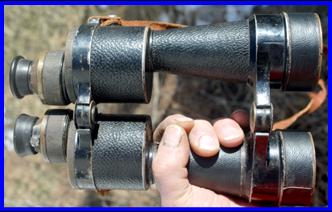

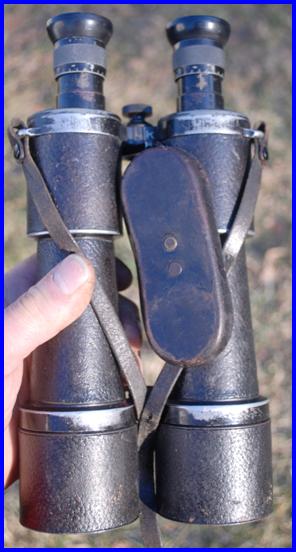

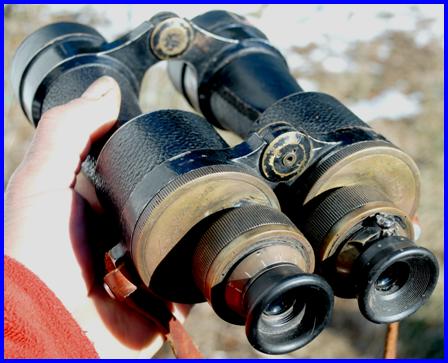

Huet 10x50 French Marine Nationale Navy Modele 1933 Type 1 Military Binoculars |
|
|
|
1934 advertisement |
|

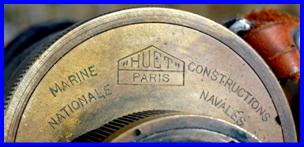

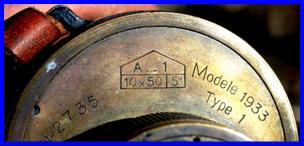

My model 1933 type 1 French Huet Paris 10x50 binoculars and case are marked as property of the Marine Nationale (French Navy), and of being part of a Navy contract. Huet brand binoculars were made by the French company Soci é t č G č n č rale D’Optique. These binoculars are believed dated between 1933 and 1940. A certain amount of French military equipment including binoculars were reused by occupying German troops, and the company continued making binoculars similar to these for the german military, but with occupation binoculars normally marked dienstglas (military property binoculars). These binoculars also have optional filter eye cups. |
|
Filter eye cups |
