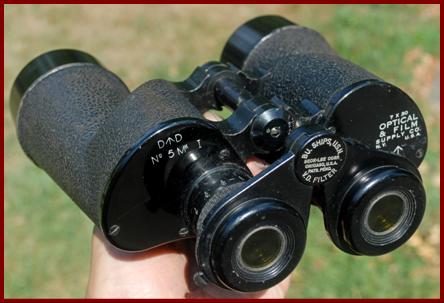

Optical & Film Supply Co US Navy military binoculars with left graticule/ range grid. 7x50 transferred to Australian army in 1941 and Australian D ↑D marked and marked No.5 Mk 1 |
|
Japanese External Reverse Porro Prism Binoculars. WEBSITE MUSEUM |
|
NEWLY ADDED ITEMS ARE CONSTANTLY INSERTED THROUGHOUT THESE 2 SECTIONS AND NOT NECESSARILY ON THE LAST PAGE ! |
|
OTHER BINOCULARS #16 & OPTICAL SIGHTS/ MOSTLY MILITARY |
|

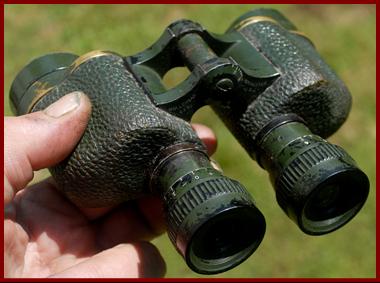

Ca 1913 Carl Zeiss DF-03 KB-Dienst German Army 6x24 military binoculars serial no 466500 |
|
My Carl Zeiss Jena K.B. (K ő niglich Bayrisches/ Bavarian War Office) Dienst (Service) D.F. 03 (Doppel Fernrohr model 03) German army 6x24 binoculars are of the second pattern of the 03 model, which had been produced since 1910, with the second variation production in 1913. It has serial number 466500 and NR. 15561 that is probably a military property number, and unknown “ J ” marking on the frame that may be an approval or inspection mark. |
|
.(info credit: binocollection.com). |
|

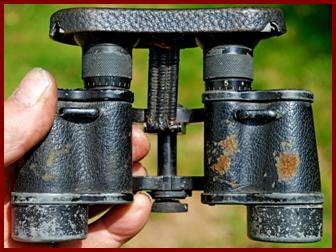

WWI Carl Zeiss DF-6x Military 6x24 military binoculars with ocular cover serial number 692092 |
|
My Carl Zeiss DF6x binoculars serial #692092 with integrated ocular cover were a military model, though which country’s military used them is not indicated. |
|
These binoculars probably date between 1915-1916 |
|

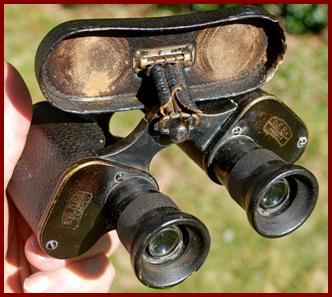

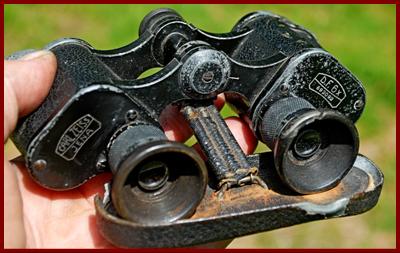

1913 Carl Zeiss Jena D.F. 8x German made Military Binoculars with integrated ocular cover serial no. 359011 |
|

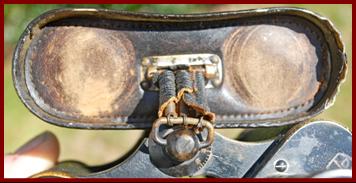

My Carl Zeiss D.F. 8x binoculars with integrated ocular cover serial #359,011 were made in 1913 as military binoculars. European armies of all countries were all mobilizing and outfitting troops in 1913, and that was still a time when officers often purchased their own binoculars. They do not carry any specific military approval codes, property mark, or inspection mark. The unusual integrated center pivot with attached ocular rain cover assembly is an indication of military usage.It is quite an interesting circumstance that the online Zeiss binoculars museum “binocollection.com” has Carl Zeiss D.F. 8x binoculars serial no. 359,126, made 115 binoculars before my same binoculars with serial no. 359,011 (a smallish number in binoculars production). But their example does not have an integrated ocular cover. |
|
WWII Spindler & Hoyer 6x30 German Dienstglas Military Binoculars. |
|
My Spindler & Hoyer Gottingen 6x30 Dienstglas WWII German military binoculars with graticule were made prior to 1940, when codes replaced maker names. The “ M ” indicated metric faceplate screws, and the H6400 refers to the graticule. |
|

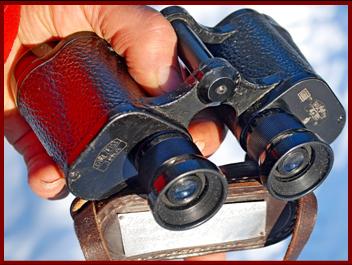

Bosch & Lomb Civilian binoculars inscribed as a presentation in 1917, donated to the US Navy War effort and accepted into service in 1942, subsequently returned to owner, and now explored here. |
|

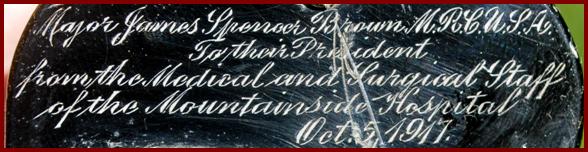

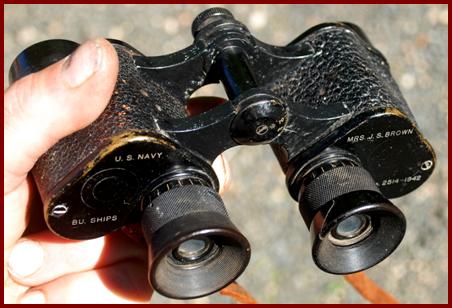

I really like binoculars which give a glimpse into an unusual interesting past history. Unfortunately I seldom acquire any directly from people that can tell me about that, so have to research marked clues. My “ 6 power 30mm prism stereo ” binoculars were made by Bosch & Lomb of Rochester NY and are marked “ Major James Spencer Brown M.R.C. U.S.A. To their President from the Medical and Surgical Staff of the Mountainside Hospital Oct.5 1917. ” James Spencer Brown (1863-1934) is documented as having been commissioned a major in WWI serving as Chief of Surgical services for the 82nd Div., before joining the Mountainside Hospital in Montclair New Jersey, and was apparently also part of the M.R.C. (Medical Reserve Corps). In response to the WWII public campaign to loan binoculars to the U.S. Navy these binoculars were given to the Navy by “Mrs. J.S. Brown ” (either James Spencer Brown’s wife (Lenore Cowan) or his son’s wife (son had same name plus Jr.) in 1942, and were processerd by the US Navy Bureau of Ships, who handled procurement; were assigned property #2514; and were marked with the donor/ lender name as was the practice. After the war, these binoculars were returned to Mrs. Brown. |
|

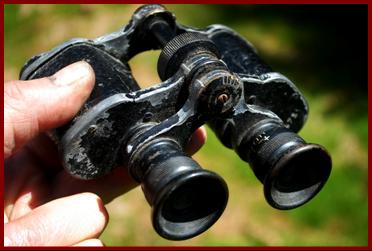

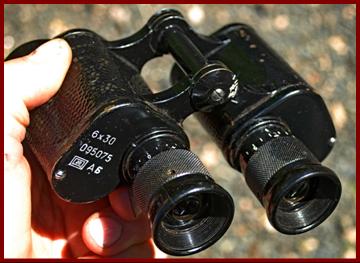

Bulgarian Army 6x30 military binoculars |
|
For our other Bulgarian Army binoculars see: |
|

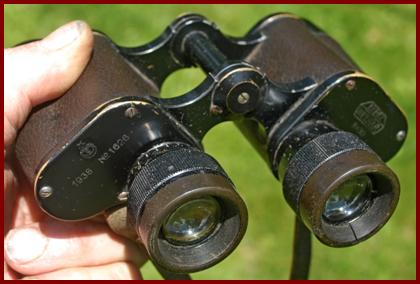

1938 E. Leitz Wetzlar 8x30 Turkish Army binoculars serial No. 1626 |
|

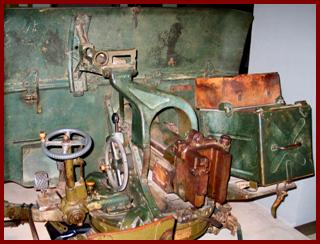

1941 Australian Opt. Co. and J.W. Handley No. 124 LP Mk I telescope sighting for the Australian 2 pounder artillery gun |
|
It is my understanding that the Bulgarian army used many different binoculars from different manufacturers in the various 20th century wars it was involved in (First Balkan War 1912-1913, Second Balkan War 1913, First World War 1915-1918, Second World War 1941-1945, and they seem to have also reused many captured binoculars. I believe the Cyrillic “ Б “ on my Bulgarian army binoculars and on other binoculars to be a Bulgarian army ( Българска армия ) military property mark. |
|
My 1938 E. Leitz Wetlar 8x30 binoculars serial No. 1626 were made by the famous German Optical firm Ernst Leitz, for a Turkish Army contract, and both the binoculars and the case have Turkish national markings. The quantity produced was probably small. |
|

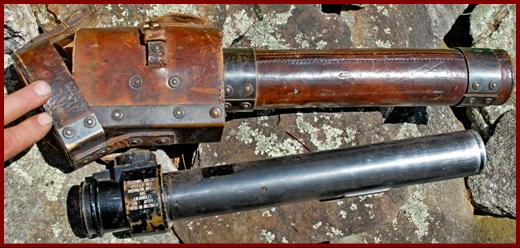

My Telescope Sighting No. 124 L.P. Mk. I serial #224 was nade by Australian Optical and J.W. Handley in Australia in 1941 for the Australian 2 pounder artillery cannon, (a UK Australian produced varitionm, and both telescope and 1942 case made by J.S. Salisbury & Sons. carry the D ↑ D Australian Army property mark, and L.P ., marking which stands for L ocal P attern. |
|
Ocular Filters |
|
NON MINIATURE BINOCULARS AND OPTICS: MOSTLY MILITARY |
|

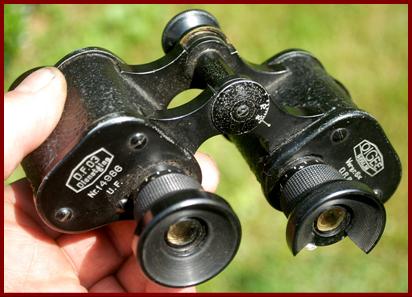

WWI Oigee Berlin DF-03 Dienstglas German Army 6x24 military binoculars serial no 86297 |
|
D.F. 03 is Doppel Fernrohr model 03. Dienstglas is Service Glass. The Nr. Is a property number. UF is Unteroffizier (junior non commissioned officer) Verg.6x is vergr öß erung/ magnification 6x. D.R.P. is Deutsche Reich Patent/ covered by German patent. |
|
Serial number on arm |
|
My Oigee D.F. 03 Dienstglas WWI German military binoculars were made by the German optical manufacturer Optische Ansalt Oigee of Berlin |
|
WWII Australian Substiture Standard military property No 3 Mk 1 marked binoculars |
|
My Australian D ↑ D (post WWI) military property marked binoculars appear to be a WWI or WWII reuse of not particularly high quality civilian (French?) center focus binoculars given a No.3 Mk 1 issue equivalency. Australia and the UK and the US pressed donated and other non standard binoculars into service to equip the large numbers of second line observers, wardens, coast watchers, etc. during both WWI and WWII. |
|

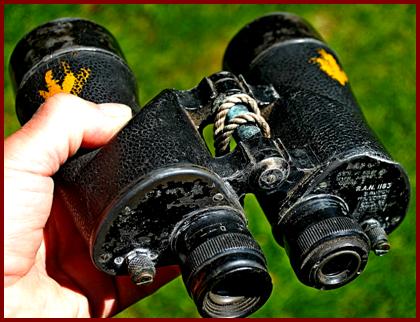

1941 WWII Australian Issue US made Bausch and Lomb 7x50 USN/ US Navy Bureau of Ships Mark I Mod. 2 #3431, then transferred to RAN/ Royal Australian Navy # 1183 property marked binoculars |
|

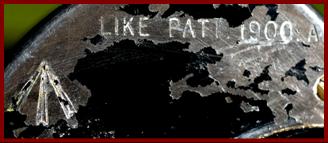

Dessicant ports were probably added in Australia to these binoculars per typical UK Admiralty specification for naval binoculars, to get the “LIKE PATT. 1900 a” status. |
|
The US supplied binoculars to the UK and to Australia under the March 1941 Lend Lease agreement materials transfers, which were made under US Navy and US Army purchase contracts, and hence the US Navy Bureau of Ships markings and subsequent R.A.N./ Royal Australian Navy and broad arrow property marked binoculars. (See my similar lend lease US US Anchor made Australian army binoculars in other Binoculars #10). |
|
Equivalent marking. This means they could be issued in place of Barr & Stroud CF41 Admiralty pattern 1900a binoculars |
|
R.A.N. 1183 U.S. NAVY BU SHIPS MARK 1 MOD 2 NO. 3431 1941 R.A.N. 1183 |
|
1941 WWII Australian Issue US made Wollensak U.S. Army binoculars serial number 27353, then transferred to Australian Army in 1941 and Australian D ↑ D marked, subsequently repainted and used by Australia forces involved in the Vietnam War (1962-1973). |
|
No. 2 Mk II equivalency marking |
|
Like my similar Wollensak binoculars above these US Army binoculars serial # 27353 were supplied to Australia in 1941, and carry the F.J.A. inspection mark, and D ↑ D Australian property marking. |
|
U.S. Army WWII marked Wollensak (M5) 6x30 binoculars issued as Australian Army property marked No2 Mk 11 binoculars and marked R.L.B. serial #2018 |
|
My WWII US Army marked Wollensak 6x30 R.L.B. binoculars also marked as UK/ Commonwealth (type) No2 Mk II and with Australian military Broad Arrow/ D property markings presumably represent a US Army contract diverted to Australia. In May 1941 the US military contracted for 16,000 Wollensak 6x30 binoculars with U.S. property markings. But the March 1941 Lend Lease agreement had authorized transfer of US military equipment to the UK and Commonwealth. So in July 1941 58,000 Wollensak binoculars were then requisitioned for the UK/Commonwealth under Lend Lease. My Wollensak 6x30 U.S. marked and R.L.B. marked serial no. 2018 binoculars were part of those transferred by the U.S. to Australia, and were type re-designated as No 2MKII and Australian D D property marked, and painted dark green for the Jan. 1943 Papua New Guinea campaign. (A quantity of U.S. Army marked and Australian and New Zealand marked Wollensak binoculars in black and green are known and documented, with R.L.B and F.J.A. inspection authorization). The earlier R.L.B. inspection mark is inspection under authority of U.S. Col. Ray L. Bowlen. Reference acknowledgement: Robin Leaech: Wollensak History-Binoculars & Optics |
|
1934 Australian army Ordnance Services standing orders on property marks on Australian military equipment, of Defense department equipment property (D arrow D) and also of property obtained under the High Commissioner’s Office (arrow within D). |
|
These were obtained in Australia, and claimed to have been used by one of the 60,000 Australian soldiers that served in the Vietnam war 1962-1973. The light green paint and marking R CO 74346Q are consistent with that. |
|
Similar to the way my other US made binoculars above were supplied to Australian forces in WWII, these 7x50 binoculars were made by US binoculars contractor Optical and Film Supply Co (NY,USA), but they presumably date later in the war because they lack the US army or US navy property markings or inspector marks indicating having been made under those contracts, and probably were made and marked going directly from the contractor to Australian forces. These were acquired in Australia and came equipped with a US Navy clip on VD filter system. |
|

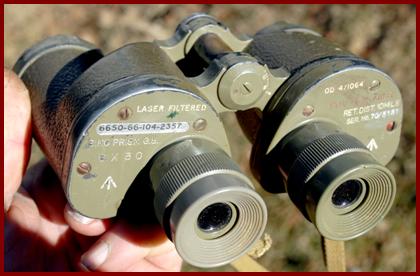

Australian Military Issue Japanese Made Katsuma 6x30 Laser Filtered Binoculars |
|

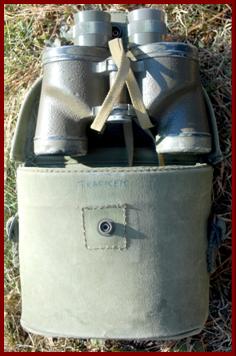

My Australian 6x30 military binoculars carry the broad arrow property mark of the UK and commonwealth, and they are laser filtered. My best guess is that they date from the 1970’s. They were contracted through Bruce Birnie Pty Ltd., of Melbourne Australia. The “JB2” manufacturer mark indicates that the assembling manufacturer of the binoculars was the Japanese firm of Katsuma Kogaku Kikai Co.Ltd. The case is marked to soldier “ TRACKER ”, which may be a name or a nickname. The red painted screws indicate sealed parts not to be unscrewed except by technicians. Marked as e laser filtered o protect eyes from targeting lasers. |
|

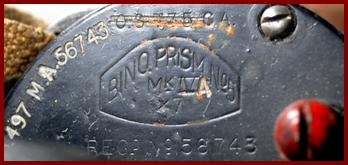

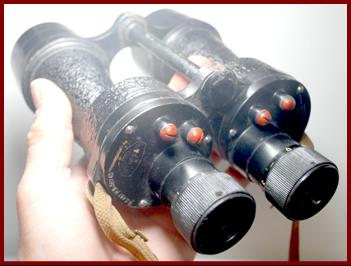

1943 Australian Military Issue British Made NIL Nottingham Industries No 5 Mk IV 7x50 Binoculars |
|

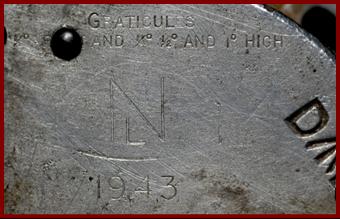

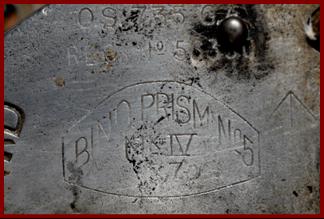

My 1943 dated Australian issued British manufactured No 5 Mk IV binoculars were made by NIL/ Nottingham Industries Limited. NIL appears to have been a UK Ministry of Supply created wartime company (1941-1946) which was set up in what had previously been a cigarette factory, but with optics and binocular manufacturer Ross operating it. The binoculars carry the WWII era Australian military property mark of broad arrow between two letters “ D ”, and also seems to have a standard UK and commonwealth military property broad arrow mark. |
|

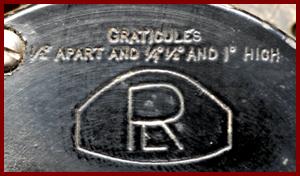

These binoculars have a right eyepiece military horizontal graticule (grid) for range finding. By aligning the grids on something of a generally known length (like a truck) the number of lines give the distance. The desiccant ports on these binoculars appear to have been added after the binoculars were manufactured. This is a modification seen on some No 5 Mk IV binoculars. These desiccant ports allowed flushing a desiccant dried air through the binoculars to prevent “fogging” caused by humidity within the binoculars, when there is a marked interior/ exterior temperature differential. This predated the more modern practice of sealing the binoculars and filling the inside with an inert gas such as nitrogen or argon, to prevent such fogging, and was most typical on naval use binoculars. |
|

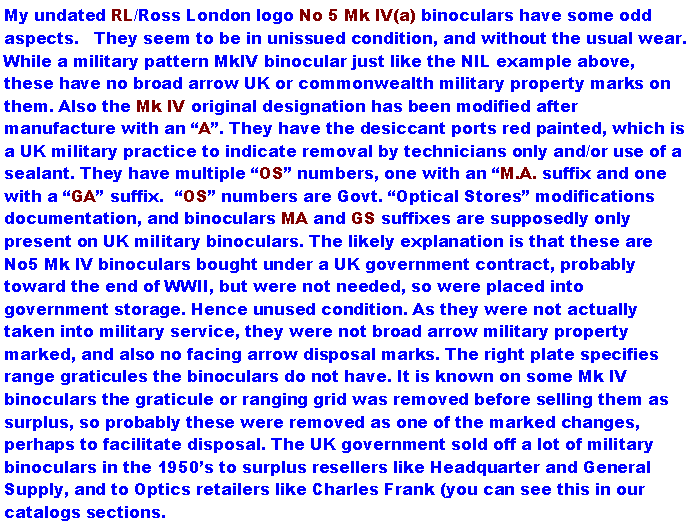

Ross London No 5 Mk IVa 7x50 British Military Binoculars |
